BASIC INFO
ABB TSP100 series Temperature sensor TSP111 TSP121 TSP131
Temperature sensor
SensyTemp TSP100
Temperature sensors for for standard application.
The main application for this RTD or thermocouples temperature sensors is pipe and tank engineering. Suitable for low and medium process requirements. It communicates via FOUNDATION Fieldbus, PROFIBUS PA, HART, 4 ... 20 mA or direct sensor output.
Overview
SensyTemp TSP100 series sensors allow for measuring inset replacement during operation. With their short response time and high vibration resistance these devices meet the most demanding process requirements.
TSP111 without thermowell
– Insertion in an existing thermowell
TSP121 with welded tubular thermowell
– Screw-in thread, flange, compression fitting
TSP131 with drilled thermowell
– Screw-in thread, flange, weld-in socket
Data
Modular design equals flexible
– Thermowell, extension tube, connection head, transmitter
– Interchangeable measuring inset
Connection heads
– BUZ: Aluminum, with hinged cover
– BUZH: Aluminum, with upper hinged cover
– BUZHD: Aluminum, with upper hinged cover and LCD indicator type AS
– BUKH: Plastic, with upper hinged cover
– Other heads in various designs and materials
Transmitter in connection head
– 4 to 20 mA, HART
– PROFIBUS PA 3.01
– FOUNDATION Fieldbus ITK 5.2
Suited to explosion protection, intrinsic safety

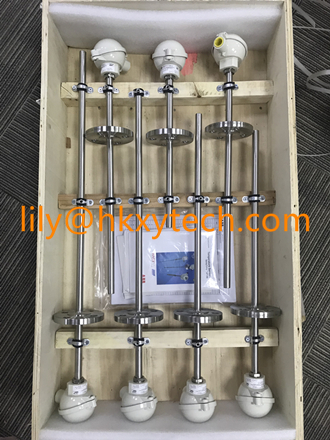

TSP128.Y0.S8.A2.F07.A8.Z9.Z9.S1.D4.P2.S1.B1.H6
TSP128.Y0.S8.A2.F07.A8.T3.L8.S1.D4.P2.S1.B1.H6
TSP128.Y0.S8.A2.F07.A8.U4.L2.S1.D4.P2.S1.B1.H6
TSP128.Y0.S8.A2.F07.A8.P6.L5.S1.D4.P2.S1.B1.H6
TSP128.Y0.S8.A2.F07.A8.U7.L6.S1.D4.P2.S1.B1.H6
TSP128.Y0.S8.A2.F07.A8.Z9.Z9.S1.D4.P2.S1.B1.H6
-----------------------------------
